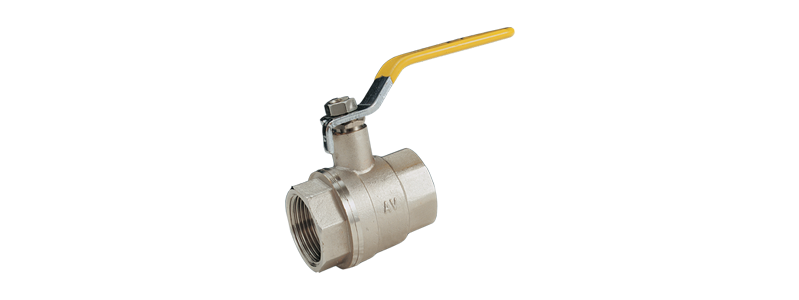

AV6000
Brass Ball Valve For Gas Full Bore , Full Ball , Steel Handle
This valve has a full bore bottom loaded stem, produced according to the Italian and international standards. It is suitable for industrial, pneumatic, domestic and hydraulic installations: Ideal for cold-hot water, different oils, compressed air, gas, dry steam, leaded & unleaded Gasonline, and fules (not suitable with methyl alcohol and saturated steam ).
Table indexes of product
Items
Body
End Connection
Ball
Ball Seal
Stem
Stem Seal
Stuffing Nut
Steel Handle
Nut
PCs.
1
1
1
2
1
2
1
1
1
Materials
Nickel Plated Brass OT58 UNI 5705
Nickel Plated Brass OT58 UNI 5705
Chrome Plated Brass OT58 UNI 5705
Virgin P.T.F.E
Nickel Plated Brass OT58 UNI 5705
Virgin P.T.F.E
Nickel Plated Brass OT58 UNI 5705
Steel, Zn Coated, Plastic Cover
Zinc-Painted Steel
|
A
|
1/2? | 3/4? | 1? | 1.1/2? | 2? | 2.1/2? | 3? | 4? |
|---|---|---|---|---|---|---|---|---|
|
DN (mm)
|
13
|
19
|
24
|
|
|
|
|
|
|
B (mm)
|
56
|
64.5
|
69
|
|
|
|
|
|
|
C (mm)
|
90
|
90
|
113
|
|
|
|
|
|
|
D (mm)
|
45.5
|
48.5
|
57
|
|
|
|
|
|
|
PN (Bar)
|
50
|
40
|
40
|
|
|
|
|
|
|
BOX
|
30
|
30
|
12
|
|
|
|
|
|
|
CARTON
|
360
|
360
|
144
|
|
|
|
|
|
