AVC. 3600
Brass Ball, Brass Body Ball Valve
This valve has a reduced bore bottom loaded stem, produced according to the Italian and international standards. It is suitable for industrial, pneumatic, domestic and hydraulic installations: cold-hot water, dry steam, oils, compressed air, etc.. (It is not suitable with methyl alcohol and saturated steam)
Working Conditions:
- Air : Min. -15 C Max. +220 C..
- Water : Min. 0 C Max. +150 C .
- Without steam : Min. -15 C Max. + 60 C..
- Nominal pressure : Max. 20 Bar.
- Opening And Closing Tests : 20,000 Times.
- Available in all sizes from : 1/2”- 4”.
- Thread according to : ISO228 - DIN259 - BS2779.

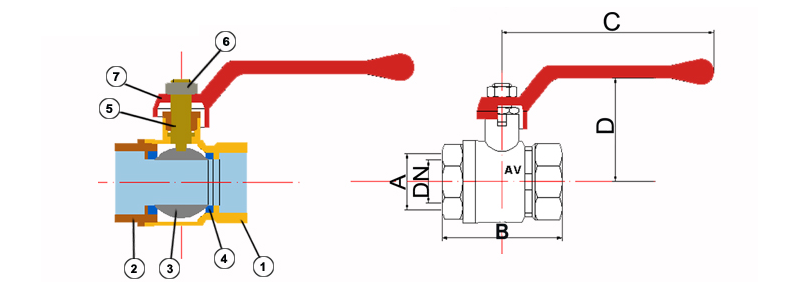

Table indexes of product
Items
Body
End Connection
Ball
Ball Seal
Stem
Nut
Alum Handle
Painted Steel Handle
PCs.
1
1
1
2
1
1
1
1
Materials
Nickel Plated Brass OT58 UNI 5705
Nickel Plated Brass OT58 UNI 5705
Chrome Plated Brass OT58 UNI 5705
Virgin P.T.F.E
Nickel Plated Brass OT58 UNI 5705
Nickel Plated Steel
Aluminum Painted - UNI 5076
Steel, Zn Coated, Plastic Cover
|
A
|
1/2? | 3/4? | 1? | 1.1/2? | 2? | 2.1/2? | 3? | 4? |
|---|---|---|---|---|---|---|---|---|
|
DN (mm)
|
12
|
14
|
20
|
30
|
37.5
|
46.5
|
56
|
76
|
|
B (mm)
|
48
|
54
|
61
|
75.5
|
93
|
100.5
|
128
|
147
|
|
C (mm)
|
90
|
91
|
114
|
148
|
148
|
148
|
234
|
234
|
|
D (mm)
|
34
|
36
|
48
|
66.5
|
72
|
80
|
106
|
115
|
|
PN (Bar)
|
20
|
20
|
20
|
16
|
16
|
16
|
16
|
16
|
|
30
|
30
|
12
|
|
|
|
|
|
|
|
CARTON
|
360
|
360
|
144
|
30
|
18
|
15
|
12
|
9
|
